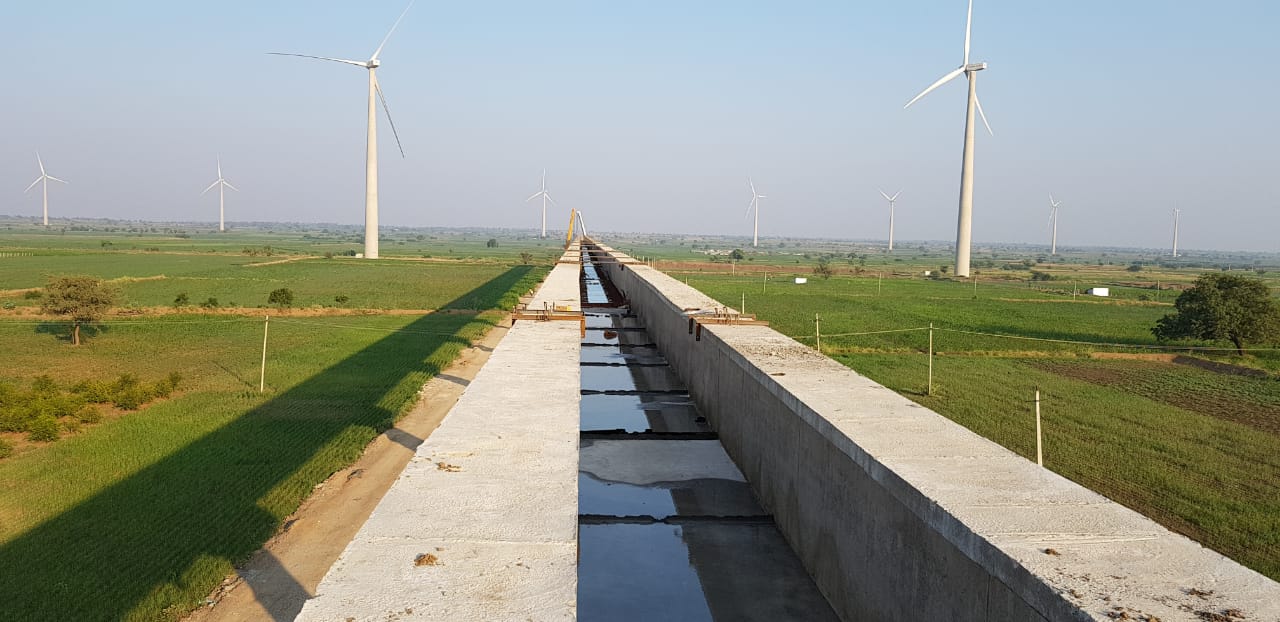

Survey, Investigation, Design, Drawing and Construction Management of Precast Pretensioned Elevated Aqueduct carrying water for a Length 5km under Tubchi Bableshwar LIS, in Bijapur District of Karnataka State
The scope also involved design of full span Precast U Girder segments of 30m length and launching the same to a maximum height of 25m from ground level.
About Project
Tubchi Project

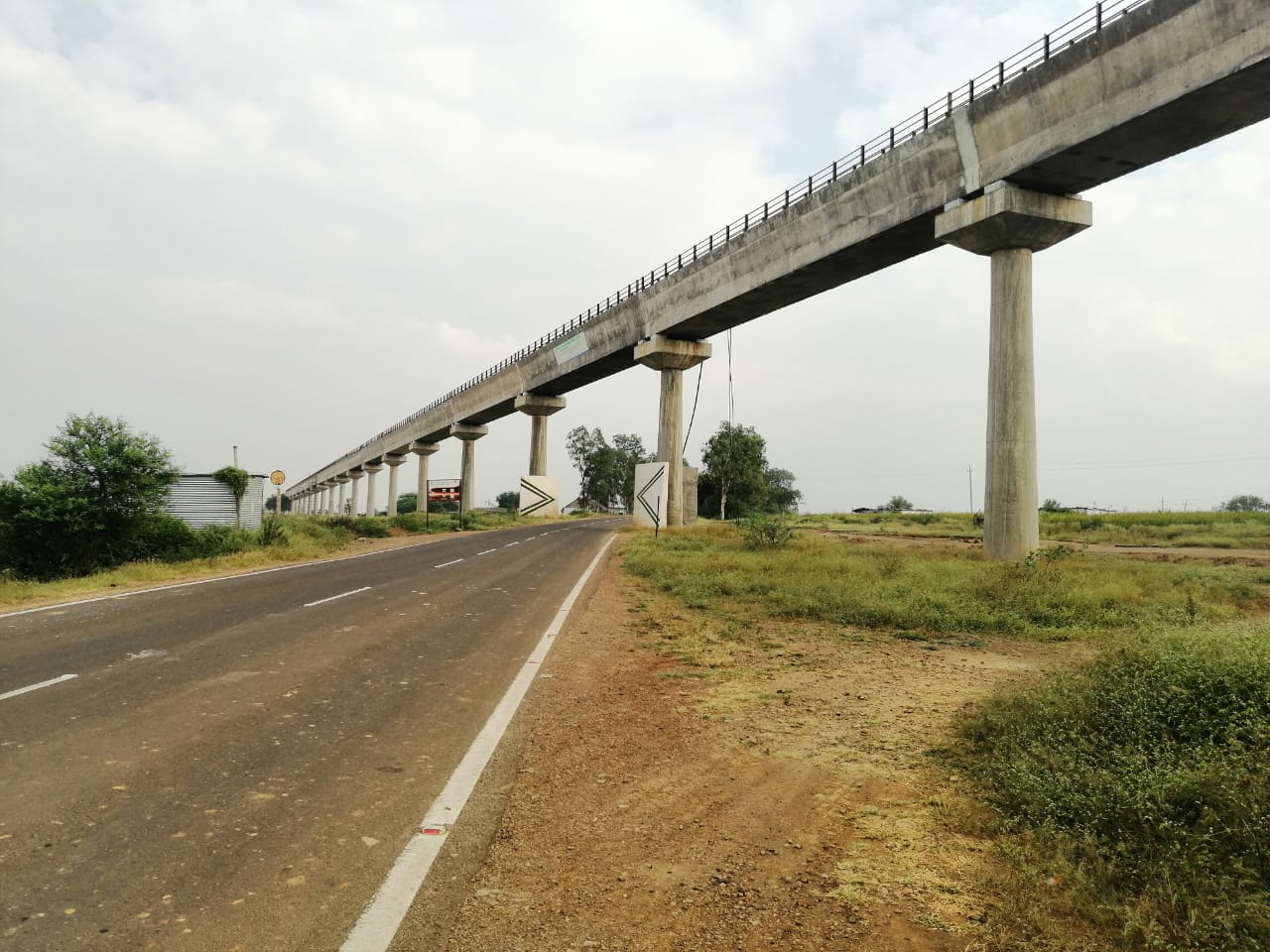

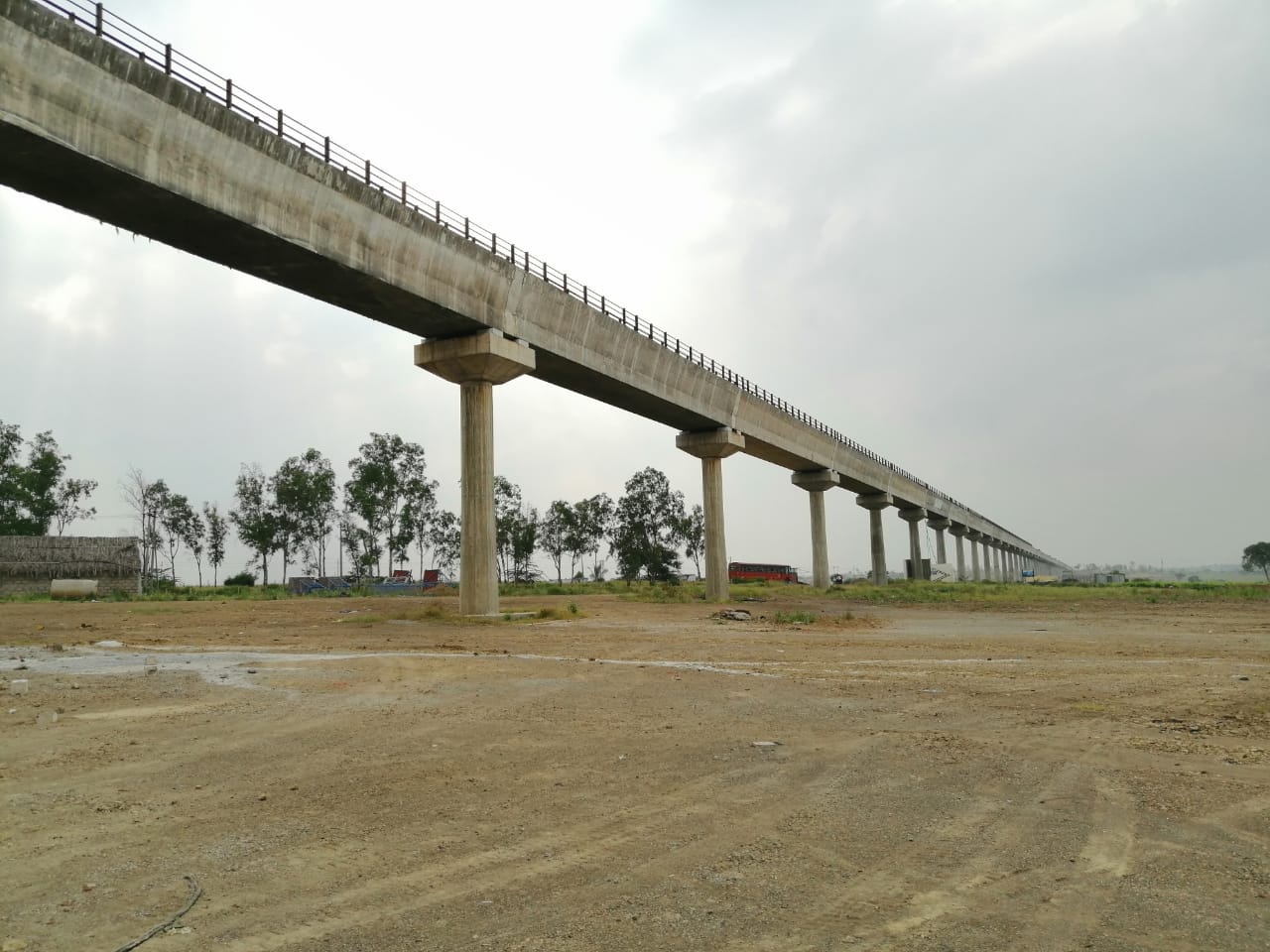

The weight of each 30m Precast pretensioned U Girder which was transported and launched was 215MT. The Maximum height of piers at the deepest portion is 25m from natural ground level.
Project info
Client: Karnataka Neeravari Nigam Ltd., Government of KarnatakaContractor: M/s Shankarnarayana Constructions Pvt. Ltd., Bangalore
Cost: Rs. 118.90 Crores Type of Structure: Precast RCC I girder 30m span connected with bottom slab
